Kia EV2: Air bag - supplemental restraint system / Overview
-

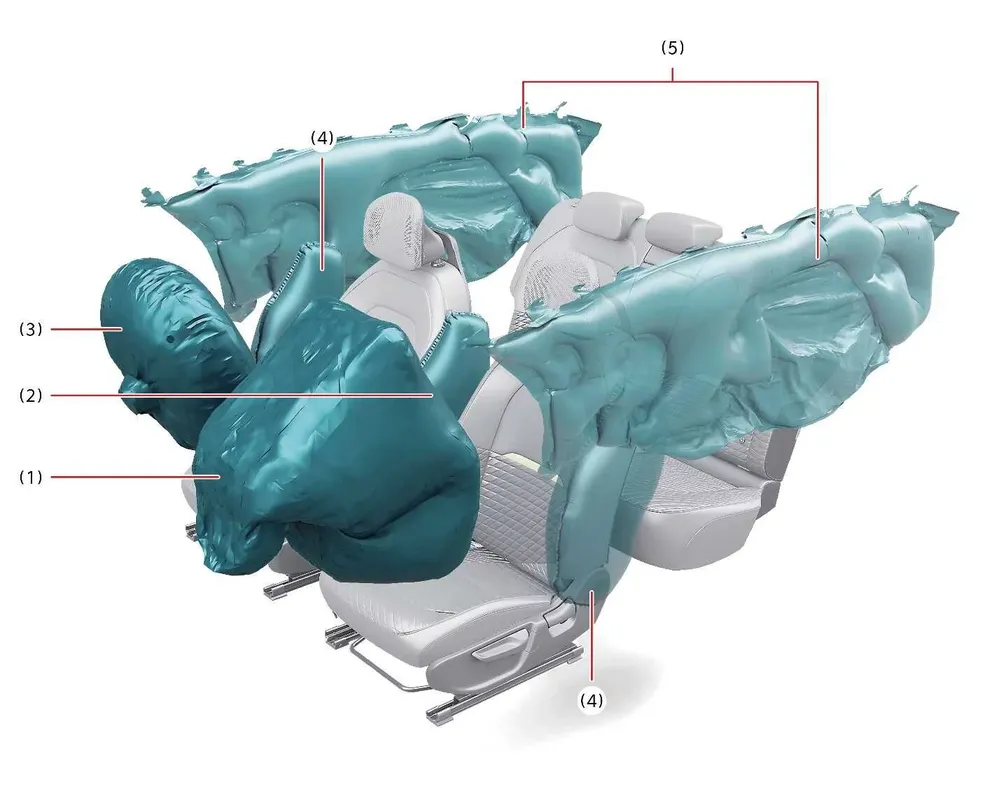

Passenger’s front air bag module positioned in the dashboard
-
Front centre side air bag* located between front seats for enhanced occupant protection
-
Driver’s front air bag housed securely within the steering wheel hub
-
Side air bag integrated into the outboard structure of the front seats
-
Curtain air bag running along the roof rails to protect head zones across rows
*: if equipped
Even in modern vehicles equipped with advanced Supplemental Restraint Systems like the Kia EV2, you and all vehicle occupants must always wear the provided safety belts properly to minimise the risk and severity of injury in the event of an unexpected collision or rollover situation.
- Air bag warning light
- Passenger's front air bag ON/OFF switch: (if equipped)
- Out of position warning
- Supplemental Restraint System (SRS) components and functions
- Driver’s and passenger’s front air bag
- Side air bag and front centre side air bag : (if equipped)
- Curtain air bag
- Air bag collision sensors
- Air bag inflation conditions
- Air bag non-inflation conditions
- Adding equipment to or modifying your air bag-equipped vehicle
Precautions
WARNING
To reduce the chance of serious or fatal injuries and receive the maximum safety benefit from your restraint system in your Kia EV2...
Air bag warning light
Operating condition(s)
When the vehicle is running or powered on, the dedicated air bag warning light appears on the instrument cluster for approximately 3–6 seconds to perform a self-diagnostic check and then turns off automatically if everything functions normally...
