Chevrolet Silverado: Electrical System / Instrument Panel Fuse Block (Right)

Chevrolet Silverado 2019-2024 Owners Manual / Vehicle Care / Electrical System / Instrument Panel Fuse Block (Right)

The right instrument panel fuse block access door is on the passenger side edge of the instrument panel.

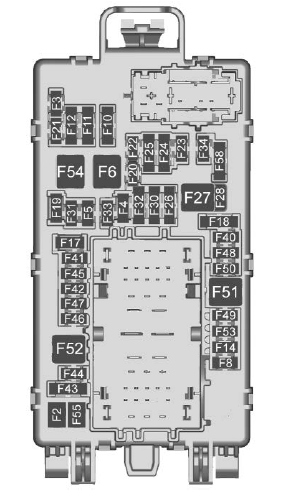

Pull off the cover to access the front of the fuse block.

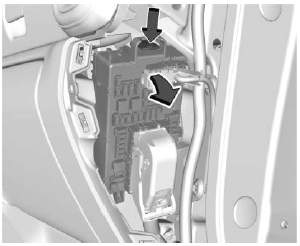

To access the back of the fuse block:

  1. Push the tab at the top of fuse block down.
  2. Pull the top of the fuse block outward.
  3. Reverse Steps 1–2 to reinstall.

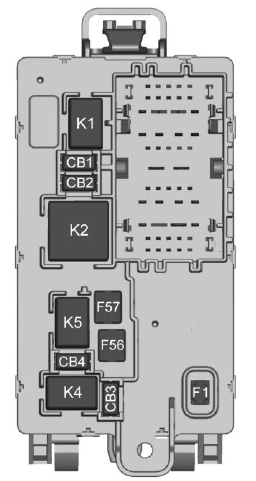

Back

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses         Usage

F1       Right doors

F2       Left doors

F3       Universal remote system

F4       –

F5       –

F6       Front blower

F8       Lumbar switch

F10     Body control module 6/Body control module 7

F11     Seat/CLM

F12     Body control module 3/Body control module 5

F14     Mirrors/Windows module

F17     Steering wheel controls

F18     VPM/OBS DET

F19     DLIS

F20     Ventilated seats

F21     NOT R/C

F22     Heated steering wheel

F23     MISC R/C

F24     Instrument panel cluster ignition/Overhead

F25     Heating, ventilation, and air conditioning ignition/Heating, ventilation, and air conditioning auxiliary

F26     USB ports/Special equipment option retained accessory power

F27     Accessory power outlet/retained accessory power

F28     Accessory power outlet/Battery

F30     Sensing and diagnostic module/Parking brake

F31     Body control module 4

F32     Special equipment option/Data link connection

F33     Body control module 8

F34     Cargo lamp

F40     CGM

F41     Infotainment 1

F42     TCP

F43     –

F44     AVM

F45     Body control module 2

F46     Heating, ventilation, and air conditioning/Battery 1

F47     Instrument panel cluster/Battery

F48     Transmission control module

F49     Body control module 1

F50     –

F51     Battery 1

F52     Battery 2

F53     –

F54     Sunroof

F55     Driver power seat

F56     DC DC TRANS 1

F57     DC DC TRANS 2

F58     Infotainment 2

Circuit Breakers        Usage

1        Accessory power outlet 2

2        Accessory power outlet 1/Cigarette Lighter

3        Accessory power outlet 3

4        Accessory power outlet 4

Relays         Usage

K1     Run/Crank

K2     Retained accessory power/Accessory 1

K4     Retained accessory power/Accessory 2

K5     –
