Kia EV2: Fuses / Motor compartment fuse replacement. Main fuse (multi-fuse)

To safely replace a circuit protection component within the motor compartment fuse panel of your Kia EV2, follow these systematic steps to prevent electrical system complications:

1. Make sure the vehicle ignition and all electrical accessory switches are completely turned off to the OFF position.

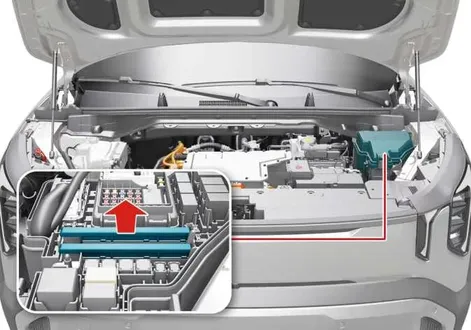

2. Carefully release and remove the motor compartment fuse panel cover by pressing firmly on the locking tab and lifting the cover straight up.
3. Pull the suspected faulty fuse straight outward using the dedicated integrated fuse puller conveniently provided directly inside the motor compartment fuse panel.
4. Examine the internal metallic filament of the extracted component to verify whether it is blown. If the fuse is indeed ruptured, use the fuse puller to prepare for the installation of a proper replacement.
5. To replace the blown fuse, firmly push a brand-new component matching the exact same amperage rating into position, ensuring it locks tightly into the retaining clips. If the replacement fuse feels loose or does not seat securely, have your vehicle inspected promptly by a professional workshop; Kia recommends visiting an authorised Kia dealer or service partner.

NOTE

After inspecting or servicing the motor compartment fuse panel on your Kia EV2, make sure to reinstall the protective fuse cover securely until you hear a distinct audible click sound. If you fail to latch the fuse panel cover properly, moisture or water intrusion can occur and cause severe electrical failures.

NOTE

The electronic control systems may occasionally fail to function correctly, even when individual fuses located within both the motor room and interior fuse boxes appear fully intact and connected. In such scenarios, the main high-current fuse (BFT type)—housed securely inside the positive 12V battery terminal cap—may be disconnected and causing the underlying malfunction. Because this main fuse features an intricate architectural design, never attempt complex repairs independently; have your vehicle evaluated by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

TIP

If diagnostic checks reveal that the heavy-duty multi-fuse is blown, refrain from attempting a DIY fix and consult a professional workshop immediately. Kia recommends visiting an authorised Kia dealer or service partner for specialized electrical diagnostics and genuine replacement parts.

Main fuse (multi-fuse)

If the main multi-fuse protecting the primary electrical architecture of your Kia EV2 is blown, follow these rigorous procedural steps to execute a safe removal and replacement:

1. Make sure the vehicle power system is fully switched to the OFF position before touching any hardware.
2. Disconnect the negative 12V battery cable securely to eliminate any risk of accidental short circuits during service.
3. Carefully remove the mounting nuts as shown in the technical reference diagram.
4. Replace the damaged unit with a brand-new high-current fuse matching the exact original amperage and engineering specifications.
5. Reinstall all components carefully by following the exact reverse order of the removal procedure.

NOTE

Visually inspect the 12V battery terminal cap after completing your work to make certain it is closed and latched securely. If the battery cap is left unlatched or loose, environmental moisture can infiltrate the electrical infrastructure and cause irreversible damage to sensitive vehicle systems.
