Kia EV2: Fuses / Fuse/relay panel description

Kia EV2 (QV1, 2026-2026) Owner's Manual / Maintenance / Fuses / Fuse/relay panel description

In this technical section of the guide, you can thoroughly explore the comprehensive fuse and relay labeling layout designed for the modern Kia EV2, explicitly detailing the exact identification names, amperage capacities, and protected electrical circuits.

TIP

Whilst the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel descriptions may apply to your vehicle.

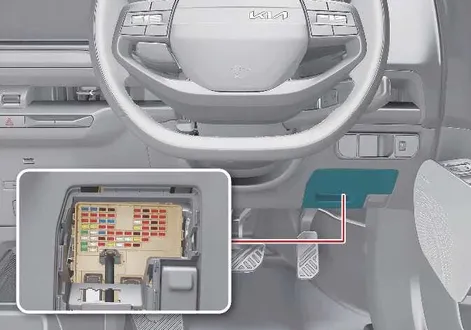

Driver side fuse panel

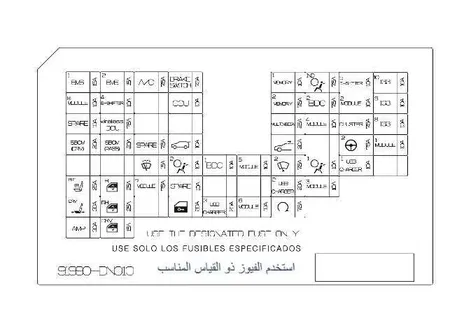

Comprehensive schematic overview of the central fuse box architecture in the Kia EV2

PDC Junction Block


FUSE NUMBER	Fuse Name	Fuse Rating	Circuit Protected
FUSE01	BMS1	15A	BMS (Battery Management System)
FUSE02	BMS2	15A	BMS (Battery Management System)
FUSE03	A/C	7.5A	ATCU (Air Temperature Control) ATCU Controller
FUSE04	BRAKE SWITCH	7.5A	BDC (Body Domain Controller) Stop Lamp Switch
FUSE05	MEMORY1	10A	SAL (Smart Ambient Light) CLUSTER WPC (Wireless Power Charger) ATCU (Air Temperature Control) ATCU Controller MKBD (Multimedia Keyboard) BDC (Body Domain Controller) ADAS Parking ECU (Advanced Driver Assistance System Parking ECU)
FUSE06	A/BAG IND	7.5A	PAB IND (Passenger Airbag Indicator)
FUSE07	E-SHIFTER5	10A	SBW Lever (Shift By Wire Lever)
FUSE08	IG3 10	10A	SEAT USB_CHARGER (DRV) SEAT USB_CHARGER (PASS) Door Trim Switch (DRV) Door Trim Switch (PASS) RR CONSOLE V2L
FUSE09	MODULE8	10A	CDM (Charge Door Module) ICMU (In Cabin Monitoring Unit) ICMU Inside Mirror OBD (On Board Diagnostic) Rain Sensor
FUSE10	E-SHIFTER4	10A	SBW Lever (Shift By Wire Lever)
FUSE11	RESERVE	10A	Not Used
FUSE12	CCU	10A	CCU (Communication Central Unit)
FUSE13	MEMORY2	7.5A	ATCU (Air Temperature Control) ATCU Controller MKBD (Multimedia Keyboard) ccNC (connected car Navigation Cockpit) BDC (Body Domain Controller) ADAS Parking ECU (Advanced Driver Assistance System Parking ECU)
FUSE14	BDC2	7.5A	BDC (Body Domain Controller)
FUSE15	MODULE2	10A	Power Window Switch DRV CCU (Communication Central Unit) Stop Lamp Switch
FUSE16	IG3 9	10A	CCU (Communication Central Unit) CDM (Charge Door Module)
FUSE17	SPARE	10A	SPARE
FUSE18	wireless DCU	7.5A	DCU (Data Connectivity Unit)
FUSE19	RESERVE	15A	Not Used
FUSE20	RESERVE	15A	Not Used
FUSE21	MULTIMEDIA	25A	ccNC (connected car Navigation Cockpit)
FUSE22	MODULE4	10A	Inside Mirror OBD (On Board Diagnostic) WPC (Wireless Power Charger) ccNC (connected car Navigation Cockpit) SAL (Smart Ambient Light) CDU (Climate Display Unit) ICMU (In Cabin Monitoring Unit) Crash Pad Switch
FUSE23	CLUSTER	7.5A	CLUSTER
FUSE24	IG3 8	10A	PTC HEATER ccNC (connected car Navigation Cockpit) ATCU (Air Temperature Control) Controller Active Incar USB charger
FUSE25	SBCM DRV	20A	SBCM DRV (Side Body-zone Control Module Driver)
FUSE26	SBCM PASS	20A	SBCM PASS (Side Body-zone Control Module Passenger)
FUSE27	SPARE	7.5A	SPARE
FUSE28	TAILGATE OPEN	10A	Tailgate Latch Actuator
FUSE29	SUNROOF	20A	Sunroof Motor
FUSE30	RESERVE	10A	Not Used
FUSE31	MDPS2	7.5A	MDPS (Motor Driven Power Steering)
FUSE32	MODULE1	10A
FUSE32	MODULE1	10A	Power Window Switch PASS / Smart Key Unit
FUSE33	IG1	10A	Relay Box / Ignition 1 Line
FUSE34	AMP	30A	External Audio Amplifier
FUSE35	P-SEAT	30A	Power Seat Module (Driver/Passenger)
FUSE36	S/OUTLET	20A	Power Outlet / Cigarette Lighter
FUSE37	I/P USB	15A	Instrument Panel USB Charger
FUSE38	HEATED STEERING	10A	Steering Wheel Heater Module
FUSE39	TAIL GATE	30A	Power Tailgate Module
FUSE40	SPARE	15A	Spare Fuse
