Kia EV2: Light bulbs / Replacing lights (LED type)

Kia EV2 (QV1, 2026-2026) Owner's Manual / Maintenance / Light bulbs / Replacing lights (LED type)

If the LED lamp is not functioning properly on your Kia EV2, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should carefully check or repair the LED lamp system to ensure that no related electrical or body parts of the vehicle are compromised during the procedure.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing day time running lamp/position Lamp/front turn signal lamp, headlamp (high/low) (LED type)

If day time running lamp/position lamp/front turn signal lamp, headlamp (high/low) are not functioning on your Kia EV2, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

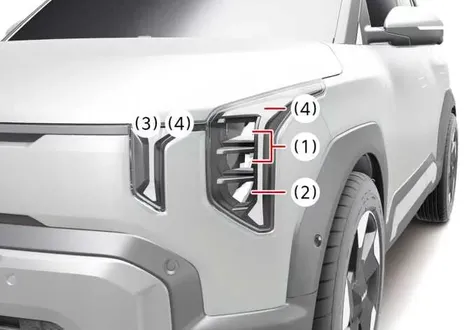

Technical schematic diagram showing the front LED lighting cluster configuration and component breakdown for the Kia EV2

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Front turn signal lamp (LED type)

  4. Day time running light/Position lamp (LED type)

NOTE

After replacing the headlamp assembly, the headlamp aiming should be adjusted. Have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

Replacing side repeater lamp (LED type)

If side repeater lamp is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

Detailed side profile view indicating the exact mounting position of the LED side repeater lamp on the Kia EV2 body panel

  1. Side repeater lamp (LED type)

Replacing tail lamp/stop lamp, reversing lamp, high mounted stop lamp, license plate lamp, rear fog lamp (LED type)

If tail lamp/stop lamp, reversing lamp, high mounted stop lamp, license plate lamp, rear fog lamp are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

Figure 1. Rear combination lamp (Type A)
Engineering overview layout for Type A rear combination lamp and housing assembly on the Kia EV2
Figure 2. Rear combination lamp (Type B)
Technical breakdown view showing Type B rear combination lamp arrangement on the Kia EV2 tailgate
Figure 3. License plate lamp
Close-up illustration highlighting the license plate lamp mounting location on the rear bumper of the Kia EV2

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp (LED type)

  3. Rear turn signal lamp (LED type)

  4. Reversing lamp (LED type) (For LHD)

    Rear fog lamp (LED type) (For RHD)

  5. Reversing lamp (LED type) (For RHD)

    Rear fog lamp (LED type) (For LHD)

  6. License plate lamp (LED type)

Replacing interior lights (LED type)

If map lamp, room lamp, vanity mirror lamp, luggage lamp, glove box lamp, ambient light are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

Figure 4. Map lamp
Interior cabin view showing the map lamp console unit configuration inside the Kia EV2
Figure 5. Room lamp
Overhead perspective showing the interior room lamp positioning in the cabin of the Kia EV2
Figure 6. Glove box lamp
Interior detail shot highlighting the glove box lamp position inside the dashboard compartment of the Kia EV2
Figure 7. Vanity mirror lamp
Sun visor vanity mirror lamp assembly illustration for the interior of the Kia EV2

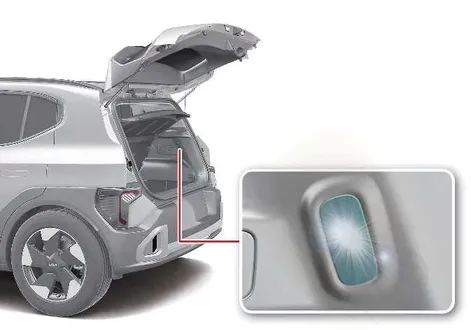

Figure 8. Luggage lamp
Trunk area view displaying the luggage compartment lamp positioning in the Kia EV2 cargo space

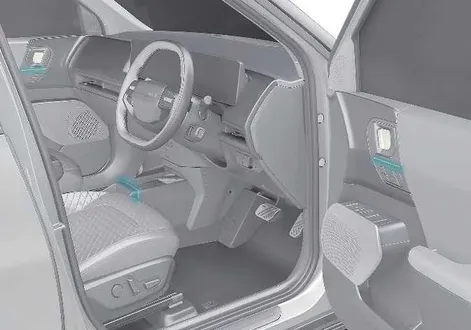

Figure 9. Ambient light (if equipped)
Cabin accent lighting layout showing the ambient illumination strips inside the Kia EV2

    Light bulb position (Rear)

    Figure 1. Rear combination lamp (Type A) Figure 2...

    Replacing lights (Bulb type)

    Replacing the rear turn signal lamp To replace the rear turn signal lamp (bulb type), follow these steps: Make sure the vehicle is in the OFF position and disconnect the negative 12V battery terminal...
