Kia EV2: Driver assistance guide / Overview. Detecting sensor(s)

Kia EV2 (QV1, 2026-2026) Owner's Manual / Driver assistance guide / Overview. Detecting sensor(s)

Detecting sensor(s)

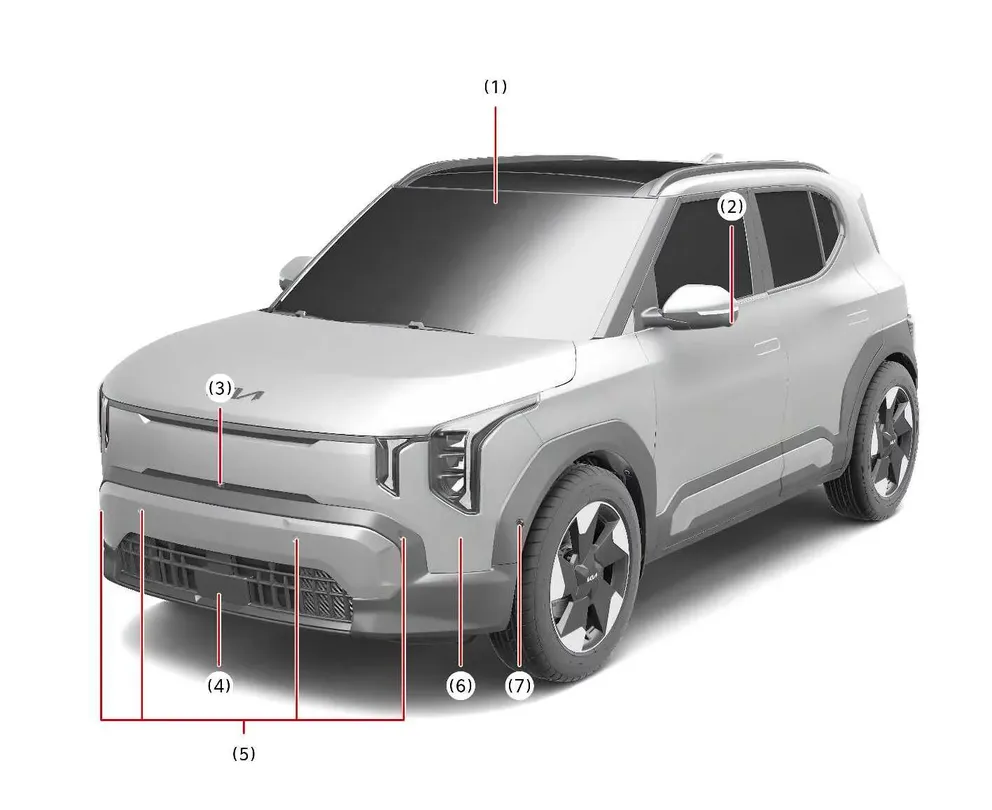

Figure 1. Front view of the Kia EV2 safety sensor layout
Detailed front view of the Kia EV2 showcasing forward-facing cameras, radars, and ultrasonic parking sensors

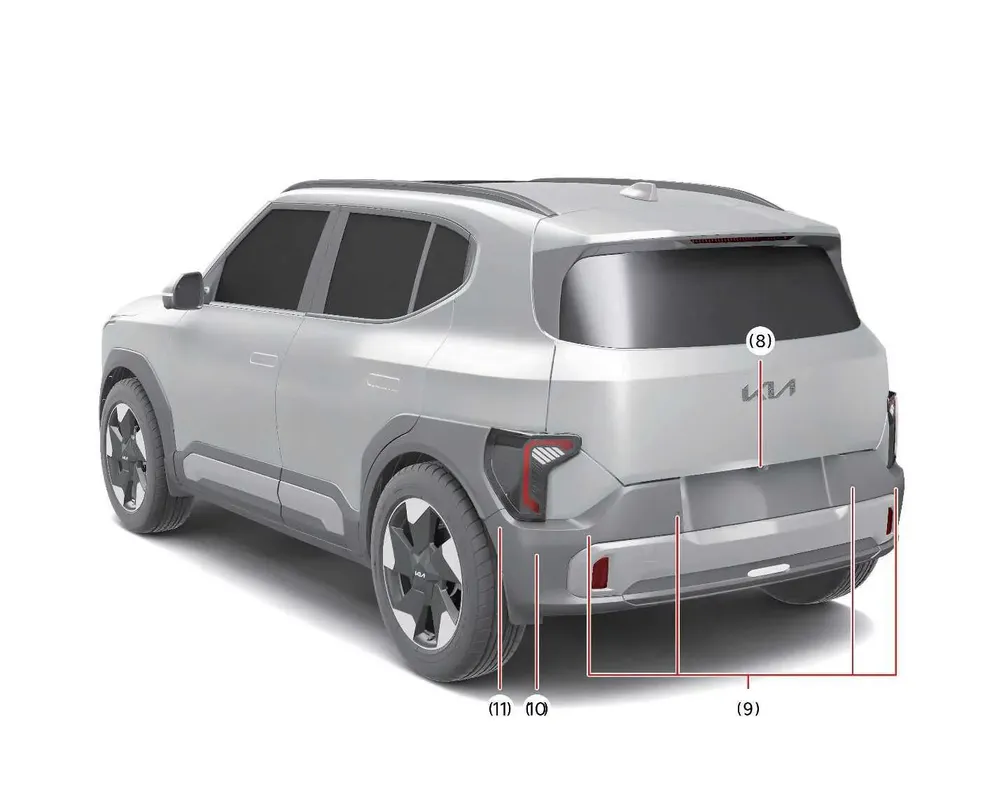

Figure 2. Rear view of the Kia EV2 safety sensor layout
Detailed rear view of the Kia EV2 highlighting rearview cameras, corner radars, and rear ultrasonic sensors

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

(1)

Front view camera

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion) in the advanced Kia EV2

  • Lane Keeping Assist (LKA)

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Lane Following Assist (LFA)

  • Highway Driving Assist (HDA)*

  • Emergency Stop (ES)*

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

(3)

Wide-front view camera*

  • Surround View Monitor (SVM)*

(4)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

  • Emergency Stop (ES)*

(5)

Front ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Remote Smart Parking Assist (RSPA)*

(6)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(7)

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Remote Smart Parking Assist (RSPA)*

(8)

Wide-rearview camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(9)

Rear ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist (RSPA)*

(10)

Rear corner radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

(11)

Rear side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Remote Smart Parking Assist (RSPA)* equipped on the modern Kia EV2

    Driver assistance guide

    WARNING As the driver, do not rely blindly on the advanced Driver Assistance Systems equipped on your Kia EV2. These automated systems do not replace the absolute necessity for maintaining constant attention and practicing safe driving habits...

    Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

    Basic function Forward Collision-Avoidance Assist implemented in the modern Kia EV2 can comprehensively detect a vehicle, a motorcyclist, pedestrian, or cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and an audible warning sound...
