Kia EV2: Overview

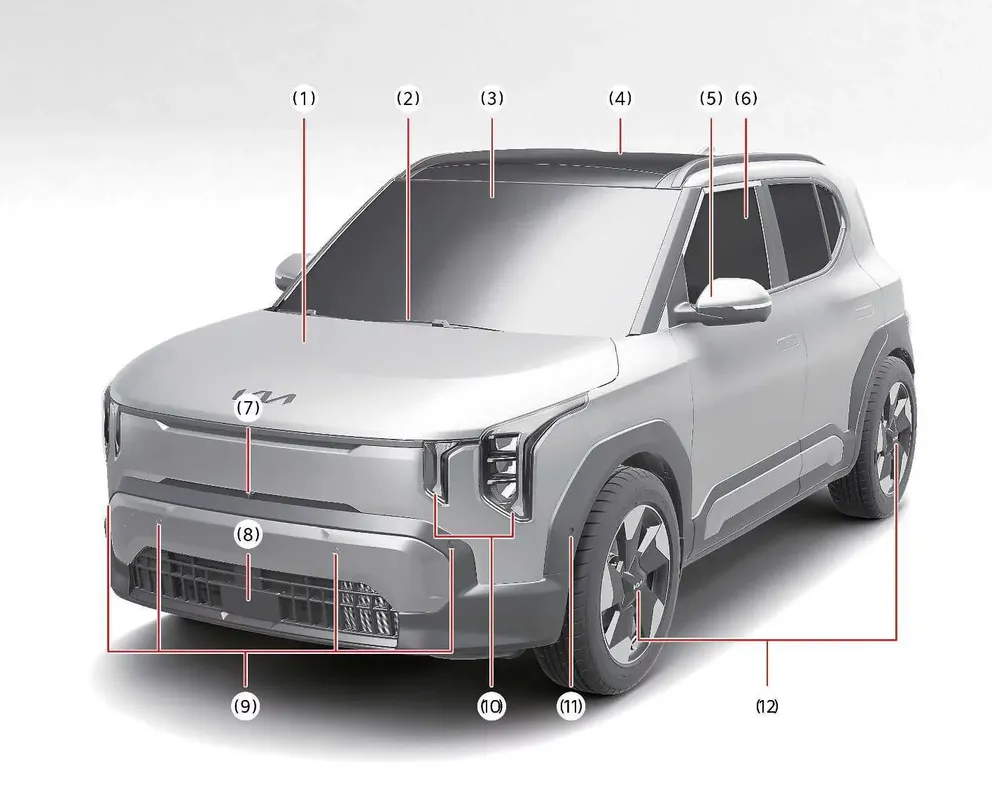

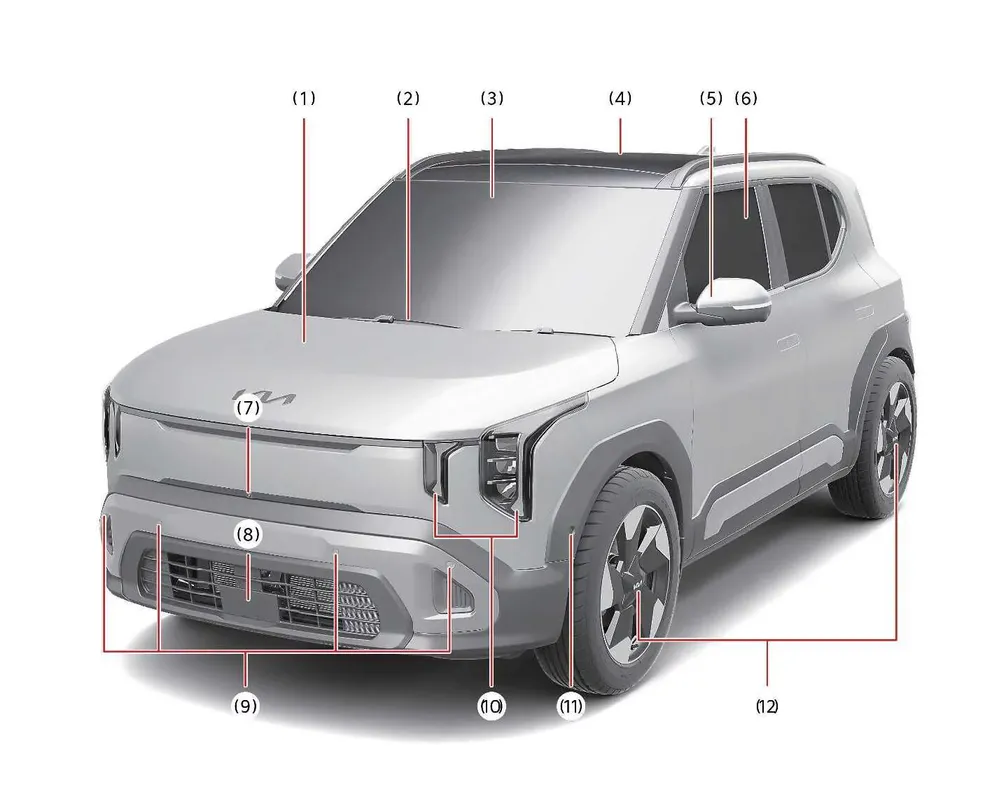

Exterior overview

The actual shape and specific aerodynamic trim details of your Kia EV2 may differ slightly from the provided illustration depending on regional specifications and model configurations.

1. Bonnet - Bonnet

2. Front windscreen wiper blades - Wipers and washers

3. Front view camera - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

4. Wide sunroof - Wide sunroof

5. Outside rearview mirror - Outside rearview mirror

6. Windows - Windows

7. Wide-front view camera - Blind-Spot View Monitor (BVM)

8. Front radar - Smart Cruise Control (SCC)

9. Front ultrasonic sensors - Reverse Parking Collision-Avoidance Assist (PCA)

10. Headlamp - Lighting

11. Front side ultrasonic sensors - Parking Distance Warning (PDW)

12. Wheel and tyre - Tyres and wheels

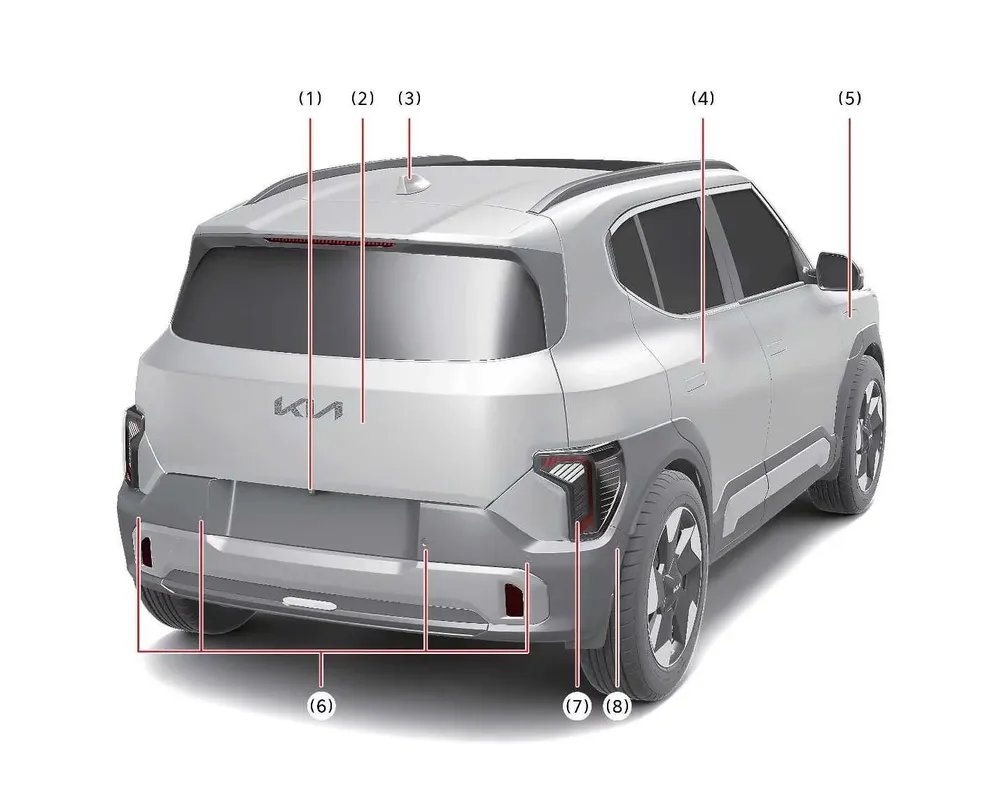

The actual shape and structural trim lines of your Kia EV2 may vary from the technical illustration shown above.

1. Wide-rear view camera - Rear View Monitor (RVM)

2. Tailgate - Tailgate

3. Antenna - Shark-fin antenna

4. Doors - Door locks

5. Charging door - Charging door

6. Rear side ultrasonic sensors - Reverse Parking Collision-Avoidance Assist (PCA)

7. Rear combination lamp - Replacing the rear turn signal lamp

8. Rear ultrasonic sensors - Parking Distance Warning (PDW)

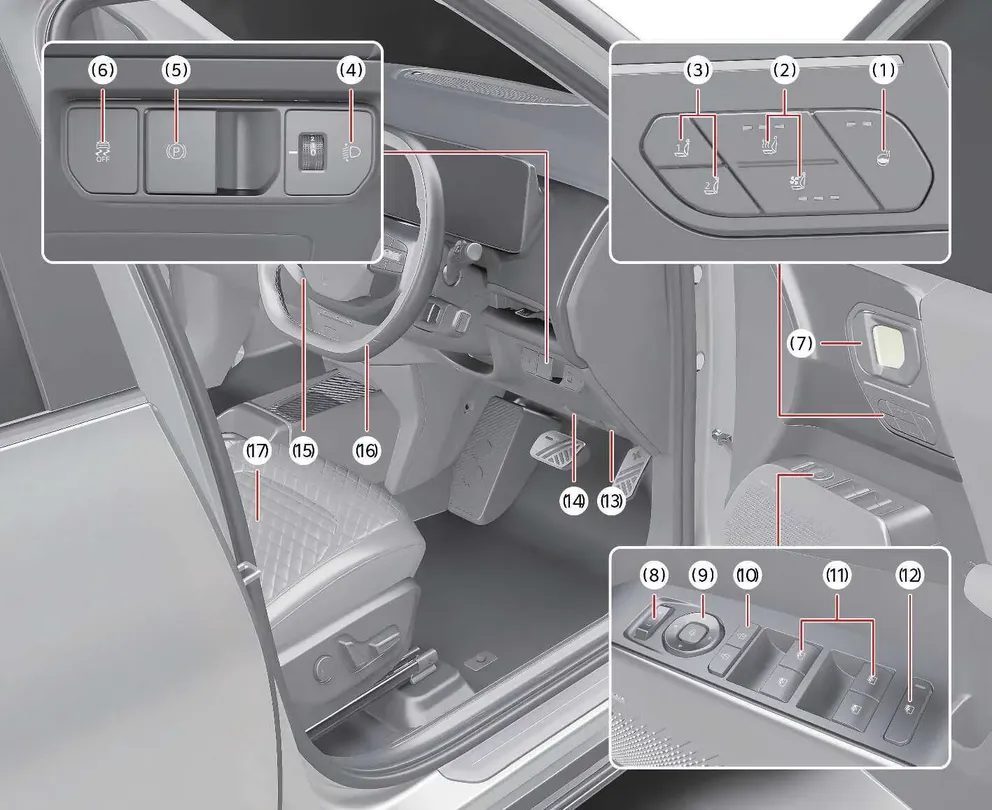

Interior overview

The actual layout, material finish, and configuration of your Kia EV2 cabin may differ slightly from the reference illustration.

1. Steering wheel heater button - Steering wheel heater

2. Front seat warmer and air ventilation seat button - Seat warmer, Air ventilation seat

3. Integrated memory system - Integrated memory system

4. Headlight levelling adjustment switch - Headlight levelling adjustment switch

5. EPB switch - Electronic Parking Brake (EPB)

6. ESC OFF button - Electronic Stability Control (ESC)

7. Inside door handle - Operating door locks from inside the vehicle

8. Outside rearview mirror L or R control switch - Outside rearview mirror

9. Outside rearview mirror control and folding switch - Outside rearview mirror

10. Central door lock/unlock switch - With central door lock switch

11. Power window switches - Window opening and closing

12. Power window lock button - Power window lock button

13. Bonnet release lever - Bonnet

14. Instrument panel fuse - Fuses

15. Tilt and telescopic steering wheel lever - Tilt and telescopic steering wheel

16. Steering wheel - Steering wheel

17. Seat - Seats

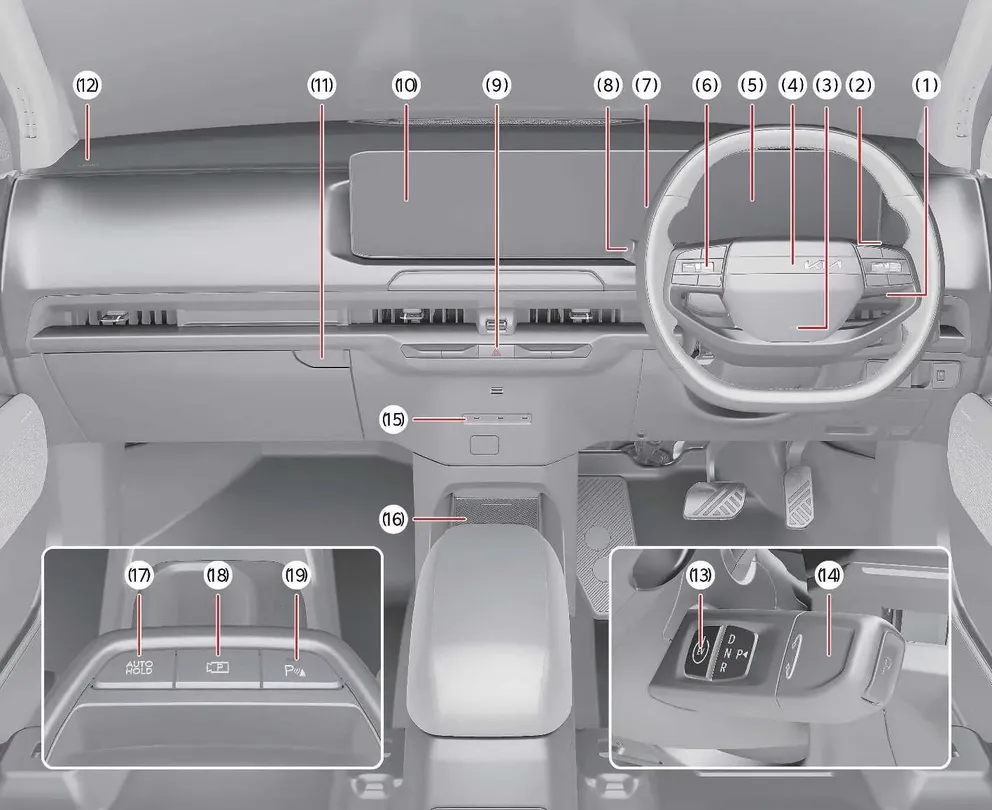

Instrument panel overview

The actual digital interface and physical layout of the Kia EV2 instrument panel may vary depending on vehicle software versions and trim specifications.

1. Wiper and washer control lever - Wipers and washers

2. Driver’s front air bag - Air bag - supplemental restraint system

3. Horn - Horn

4. Instrument cluster - Instrument cluster

5. Driving Assist button - Lane Keeping Assist (LKA), Smart Cruise Control (SCC)

6. DRIVE MODE button - Drive mode integrated control system

7. Climate control system - Automatic climate control system

8. Light control/turn signals lever - Lighting

9. Hazard warning flasher switch - Hazard lights switch

10. Infotainment system - Infotainment system

11. Glove box - Glove box

12. Passenger’s front air bag - Driver’s and passenger’s front air bag

13. EV button - EV button

14. Shift lever - Shift lever

15. USB Charger - USB charger

16. Wireless charging system - Wireless smartphone charging system

17. AUTO HOLD button - AUTO HOLD

18. Parking/View button - Parking/View button

19. Parking Safety button - Parking Safety button

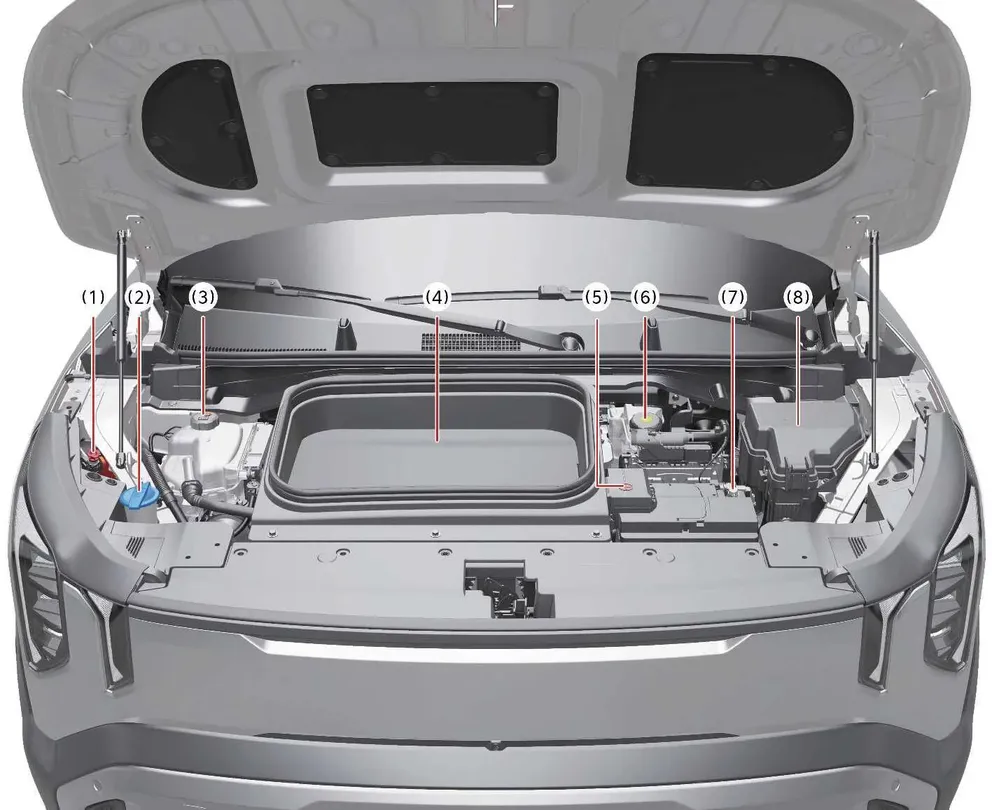

Motor room compartment overview

The actual motor room compartment layout and component placement in your Kia EV2 may differ slightly due to continuous engineering enhancements and variant configurations.

1. Charging connector release cable - Unlock the charging connector in an emergency

2. Windscreen washer fluid reservoir - Washer fluid

3. Coolant reservoir - Coolant

4. Front trunk - Front trunk

5. Positive battery terminal - Jump starting, 12V battery

6. Brake fluid reservoir - Brake fluid

7. Negative battery terminal - Jump starting, 12V battery

8. Fuse box - Fuse/relay panel description
