Kia EV2: Specifications

Kia EV2 (QV1, 2026-2026) Owner's Manual / Specifications

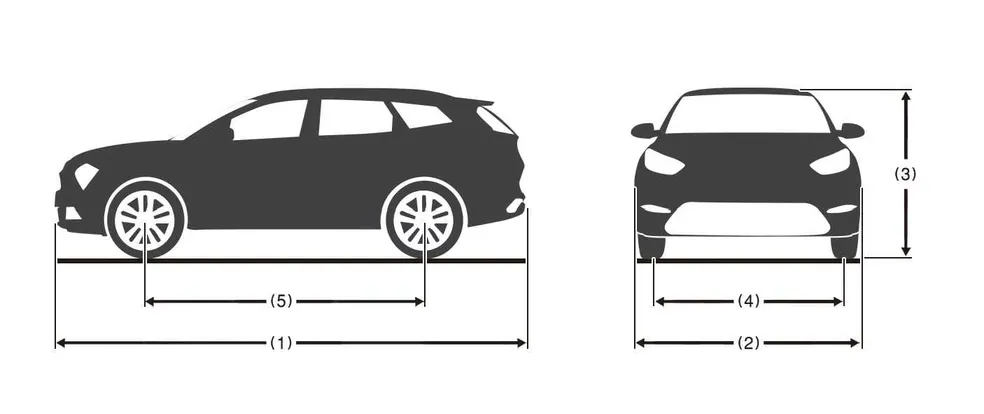

Dimensions

Item				mm (inches)
Item				Base	`GT`-Line
(1)	Overall length			4,060 (159.8)	4,065 (160.0)
(2)	Overall width			1,800 (70.9)
(3)	Overall height		Without Antenna	1,575 (62.0)	1,585 (62.4)
(3)	Overall height		With Antenna	1,595 (62.7)	1,605 (63.2)
(4)	Tread	Front	205/65 R16	1,571 (61.9)	-
			215/50 R18	1,559 (61.4)	-
			225/45 R19	-	1,562 (61.5)
		Rear	205/65 R16	1,589 (62.6)	-
			215/50 R18	1,577 (62.1)	-
			225/45 R19	-	1,579 (62.2)
(5)	Wheelbase			2,565 (101.0)

Electric vehicle specifications

OBC: On-Board Battery Chargers for the advanced Kia EV2 powertrain architecture.
Items				Standard Type
Motor	Max. output (kW)			107.8
Motor	Max. torque (Nm)			250
High-voltage battery	Capacity (kWh)			42.2
Charger (OBC)	Max. output (kW)	AC 3 phase	Type A	10.5
Charger (OBC)	Max. output (kW)	AC 3 phase	Type B	21

Gross vehicle weight


Gross Vehicle Weight [kg (lbs.)] for the agile Kia EV2 lineup
Standard Type
Base (4 Seats)	Base (5 Seats)	Light (4 Seats)	Light (5 Seats)
2,020 (4,453)	2,090 (4,607)	1,910 (4,210)	1,990 (4,387)

Available front trunk weight


2WD
10 kg (22 lbs.)

Luggage volume


Luggage volume (VDA) [L (cu ft)] engineered into the versatile Kia EV2 cargo space
362 (12.8)

Air conditioning system

Please contact a professional workshop for more details. Kia recommends visiting an authorised Kia dealer or service partner to service your Kia EV2 climate control system.
Item		Weight of volume (g)	Classification
Refrigerant	With heat pump	1025 ± 25	R-1234yf
	With heat pump	1125 ± 25	R-134a
	Without heat pump	900 ± 25	R-1234yf
	Without heat pump	1000 ± 25	R-134a
Compressor lubricant	With heat pump	180 ± 10	POE
Compressor lubricant	Without heat pump	150 ± 10	POE

Bulb wattage

: if equipped on your specific Kia EV2 trim level
Light bulb			Bulb type	Wattage (Watt)
Front	High beam		LED	LED
	Low beam		LED	LED
	Position lamp/daytime running lamps		LED	LED
	Position lamp/daytime running lamp/Turn signal lamps		LED	LED
Rear	Type A	Stop and tail lamps	LED	LED
	Type A	Turn signal lamps	PY21W	21
	Type B*	Stop and tail lamps	LED	LED
	Type B*	Turn signal lamps	LED	LED
	Back up lamp		LED	LED
	High mounted stop lamp		LED	LED
	License plate lamps		LED	LED
	Rear fog lamp*		LED	LED
Interior	Map lamps (Bulb type)		W10W	10
	Map lamps (LED type)		LED	LED
	Room lamp (Bulb type)		FESTOON	10
	Room lamp (LED type)		LED	LED
	Vanity mirror lamps (Bulb type)*		FESTOON	10
	Vanity mirror lamps (LED type)*		LED	LED
	Luggage lamp (Bulb type)		FESTOON	10
	Luggage lamp (LED type)		LED	LED

Tyres and wheels


Item	Tyre size	Wheel size	Load capacity		Speed capacity		Inflation pressure [bar (psi, kPa)]		Wheel lug nut torque kgf·m (lbf·ft, N·m)
Item	Tyre size	Wheel size	LI 1	kg	SS 2	km/h	Front	Rear	Wheel lug nut torque kgf·m (lbf·ft, N·m)
Full size tyre	205/65 R16	6.5J X 16	95	690

How to check the symbol on the charging label (For Europe)

Vehicle charging INLET	Charging connector OUTLET
	<Symbol location and application example>
Figure 1. Type A Figure 2. Type B

Vehicle charging INLET

Charging connector OUTLET

Close-up symbol indicator on the Kia EV2 charging cable connector

Figure 1. Type A

Kia EV2 charging label Type A diagram for European electric vehicle infrastructure specifications

Figure 2. Type B

Kia EV2 charging label Type B diagram illustrating alternative connector compatibility standards

Precautions for charging AC and Trickle charger* (Portable charging cable*) (AC charging)

After securely opening the dedicated vehicle charging door on your modern Kia EV2, carefully inspect the standardized charging symbol located clearly at the bottom of the safety warning label.
Verify that the specific charging connector symbol on your AC cable or portable trickle charger perfectly matches the vehicle requirements before plugging in.
After verifying the correct alphabet letter identifier of the charging symbol, proceed with the safe energy transfer steps for your Kia EV2.

Refer to How to check the symbol on the charging label (For Europe) for detailed visual identification guides.
Severe risks of equipment failure, electrical hazards, thermal incidents, or personal injury can occur if you attempt to connect a charging cable or connector with an unmatched or incompatible symbol.

: Depending on your region, this cable may not be provided in your vehicle.

Precautions for DC charging (DC charging)

After unlocking and opening the charging port door on your Kia EV2, always inspect the high-voltage charging symbol displayed at the bottom of the information label.
Examine the charging connector symbol directly on the high-speed DC fast-charging station terminal to ensure total compliance.
After cross-referencing the specific alphabet letter of the charging symbol, safely proceed with your fast-charging session.

Refer to How to check the symbol on the charging label (For Europe) for comprehensive matching instructions.
Critical risks of electrical failure, system faults, or severe injury are expected if you attempt fast-charging with a connector featuring an unmatched symbol.

Electric charging label (For Europe)

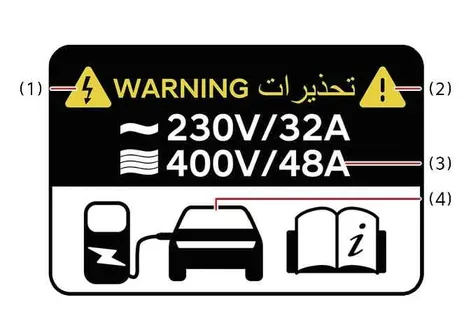

Figure 3. Type A

Kia EV2 European electric charging label Type A layout showing voltage and current indicators

Figure 4. Type B

Kia EV2 European electric charging label Type B layout detailing advanced charging parameters

Warning for high voltage systems and components
Standardized symbol designating the vehicle charging door mechanism
Supported charging voltage and current parameters for your Kia EV2

(): AC Single phase

(): AC 3 phase
For further technical details, refer to How to check the symbol on the charging label (For Europe).

(5)–(7): Specialized symbols indicating exact charging types and connector protocols. For further details, refer to How to check the symbol on the charging label (For Europe).

Electric charging label symbol table (For Europe)

AC and Trickle charger* charging

: Depending on your region, this cable may not be provided in your vehicle.
Supply type	Standard	Configuration	Type of Accessory	Voltage range	Identifier
AC	EN 62196-2	TYPE 2	Vehicle connector and vehicle inlet	≤480V RMS

DC charging

Supply type	Standard	Configuration	Type of Accessory	Voltage range	Identifier
DC	EN 62196-3	FF	Vehicle connector and vehicle inlet	50V to 500V
DC	EN 62196-3	FF	Vehicle connector and vehicle inlet	200V to 920V
