Kia EV2: Blind-Spot Collision-Avoidance Assist (BCA): (if equipped) / Blind-Spot Collision-Avoidance Assist malfunction and limitations

Blind-Spot Collision-Avoidance Assist malfunction

Check Driver Assistance system.

When Blind-Spot Collision-Avoidance Assist is not working properly, the Master warning light () appears on the instrument cluster, along with a warning message, which lasts for several seconds. If this occurs, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner to ensure your Kia EV2 functions safely and reliably.

Check side view mirror warning light

When the outside rearview mirror warning light is not working properly, the Master warning light () appears on the instrument cluster, along with a warning message, which lasts for several seconds. If this occurs, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner for specialized diagnostic service.

Blind-Spot Collision-Avoidance Assist disabled

Driver Assistance system limited. Radar blocked.

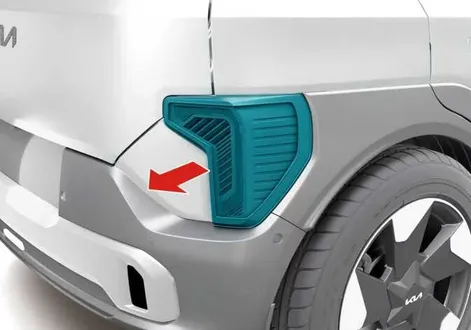

When foreign material (such as snow or rain) covers the rear bumper near the rear corner radar or sensor, or when you install a trailer or carrier, it can reduce the detection performance and temporarily limit or disable Blind-Spot Collision-Avoidance Assist.

A warning message and the Master warning light () display on the instrument cluster. This does not indicate a permanent Blind-Spot Collision-Avoidance Assist malfunction.

Blind-Spot Collision-Avoidance Assist operates properly after you remove foreign material (such as snow or rain) from the sensor or obstructions (such as a trailer or carrier) from the rear bumper then restart the vehicle.

If Blind-Spot Collision-Avoidance Assist still does not operate properly after you remove foreign material (such as snow or rain) from the sensor or obstructions (such as a trailer or carrier) from the rear bumper, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

WARNING

CAUTION

TIP

Limitations of Blind-Spot Collision-Avoidance Assist

Your Kia EV2 is engineered with advanced driver assistance technologies, yet the Blind-Spot Collision-Avoidance Assist system may operate abnormally or unexpectedly under the following challenging circumstances:

• There is inclement weather, such as heavy snow or blinding rain.

• The detection sensor is covered with snow, rain, dirt, mud, and so on.

• The ambient temperature around the detection sensor is extremely high or low.

• The detection sensor is blocked whilst you drive near another vehicle, concrete pillar, or solid wall.

• You are driving on a highway ramp or passing through a tollgate.

• The pavement contains abnormally metallic components (such as heavy debris left from subway construction or railway tracks).

• There are fixed objects near the vehicle, such as sound barriers, guardrails, central dividers, entry barriers, street lights, road signs, tunnels, walls, and so on.

• You are driving on a narrow rural road with overgrown foliage brushing against the vehicle body.

• You are driving in wide open areas where there are few vehicles or reference structures.

• You are driving on a wet road surface with standing water.

• Other vehicles are moving very close behind you or passing you at close range.

• Other vehicles are moving at a very high speed when passing your Kia EV2.

• You actively pass another vehicle on the road.

• You execute a lane change maneuver.

• You and a vehicle next to you accelerate simultaneously.

• A vehicle in the next lane moves two lanes away from you, or a vehicle two lanes away suddenly moves to the adjacent lane.

• You have installed a trailer or external carrier near the rear corner radar.

• You cover the bumper near the rear corner radar with objects such as a bumper sticker, bike rack, or accessories.

• The bumper near the front or rear corner radar is structurally damaged, or the internal radar module is out of position.

• Your vehicle height is abnormally low or high due to heavy cargo loads, improper tyre pressure, and so on.

• Snow chains or replacement wheels of a different size are installed on the vehicle.

• The following specific objects are detected in your vicinity:

  • A motorcycle or bicycle.

  • A vehicle towing an open flat-bed trailer.

  • A large commercial vehicle, such as a bus or heavy truck.

  • A moving obstacle, such as a pedestrian, animal, shopping cart, or stroller.

  • A lower-profile vehicle such as a compact sports car.

Pay extra attention during your journey. Active braking control may not operate under the following conditions:

• The vehicle vibrates intensely whilst you drive over a severely bumpy road or deep pothole.

• You drive on an extremely slippery surface such as packed snow, standing water, or black ice.

• Tyre pressure is critically low or tyres are structurally damaged.

• The vehicle braking system has been modified from factory specifications.

• You steer abruptly or execute sudden evasive maneuvers.
