Kia EV2: Instrument cluster / LCD display
The customizable LCD display modes on your advanced Kia EV2 can be seamlessly adjusted using the integrated steering wheel control buttons.

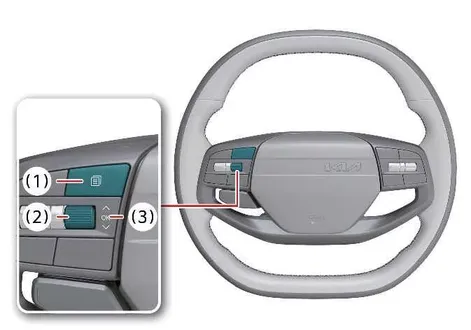

LCD Display Control
|
|
Switch |
Control |
Action |
|---|---|---|
|
Mode (1) ( |
Short Press |
Changing view modes |
|
Up/Down (2)
|
Short Roll |
Searching Utility information |
|
OK (3) |
Short Press |
Operating additional functions |
|
Long Press |
Resetting menu information |
)
,
Indicator lights
Charging indicator light
This dynamic indicator illuminates to provide immediate visual feedback when charging the high voltage battery of your Kia EV2...
LCD display modes
View
Description
Driving Assist view
Displays information related to Driver assistance system
Navigation view
Displays information related to navigation system
Utility information view
Displays information related to driving, warning, etc...
