Kia EV2: ISOFIX low anchorage and ISOFIX top tether anchorage (ISOFIX anchorage system) for children / Securing a Child Restraint System seat with "ISOFIX top tether anchorage" system

Kia EV2 (QV1, 2026-2026) Owner's Manual / Seating and safety restraints / ISOFIX low anchorage and ISOFIX top tether anchorage (ISOFIX anchorage system) for children / Securing a Child Restraint System seat with "ISOFIX top tether anchorage" system

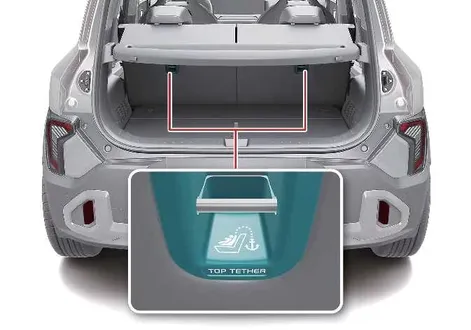

4 seats configuration inside the Kia EV2 cabin layout for child safety management

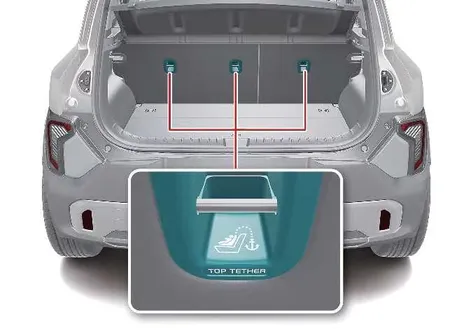

5 seats configuration options available for family transport within the versatile Kia EV2 interior

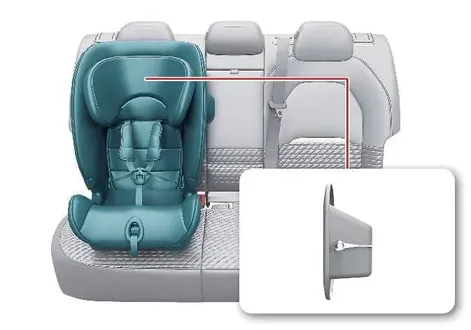

Child Restraint hook holders are conveniently located on the back of the rear cushions to ensure maximum stability and reliable safety integration when setting up safety seats in your modern Kia EV2.

Route the ISOFIX top tether strap over the seatback carefully, ensuring no twisting occurs along the webbing material.

For vehicles with adjustable headrests, route the tether strap under the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback securely.
Connect the ISOFIX top tether strap to the designated ISOFIX top tether anchorage, then tighten the ISOFIX top tether strap according to the precise instructions provided by your Child Restraint System's manufacturer to firmly attach the Child Restraint System to the vehicle seat.

WARNING

Take the following vital precautions when installing the ISOFIX top tether strap inside your Kia EV2:

Read and follow all installation instructions provided with your Child Restraint System thoroughly before proceeding.

NEVER attach more than one Child Restraint System to a single ISOFIX top tether anchorage. This dangerous practice could cause the anchorage or attachment hardware to come loose or break under load.

Do not attach the ISOFIX top tether strap to anything other than the correct, factory-designated ISOFIX top tether anchorage points. The system may not function properly if secured to alternative locations.

Child Restraint System anchorages are engineered and designed to withstand only those loads imposed by correctly fitted child restraints.

Under no circumstances are they to be used for adult seatbelts, body harnesses, or for attaching other luggage, cargo, or equipment to the vehicle structure.

Securing a Child Restraint System with "ISOFIX Anchorage System"

To properly install an ISOFIX-compatible Child Restraint System in either of the rear outboard seating positions of your Kia EV2, follow these precise steps: Clear the area by moving the standard seat belt buckle completely away from the ISOFIX low anchorages...

Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations (Information for use by vehicle users and CRS manufacturers)

Yes: Suitable for fitment of the designated category of CRS No: Not suitable for fitment of the designated category of CRS "-": Not applicable F: Forward facing R: Rearward facing CRS categories Seating positions 1, 2 3 4 52 6 Airbag ON Airbag Off Universal belted CRS All mass groups - No Yes1 F, R Yes F, R Yes F, R Yes F, R i-Size CRS ISOFIX CRF (F2,F2X,R1,R2) - No No Yes F, R No Yes F, R Carry cot (ISOFIX lateral facing CRS) ISOFIX CRF (L1,L2) - No No No No No ISOFIX infant* CRS (* : ISOFIX baby CRS) ISOFIX CRF (R1) - No No Yes R No Yes R ISOFIX toddler CRS - small ISOFIX CRF (F2,F2X, R2, R2X) - No No Yes F, R No Yes F, R ISOFIX toddler CRS - large* (*: not booster seats) ISOFIX CRF (F3, R3) - No No Yes F, R3 No Yes F, R3 Booster seat-Reduced width ISO CRF (B2) - No No Yes No Yes Booster seat-Full width ISO CRF (B3) - No No Yes No Yes To install Universal CRS safely, the 1st row passenger seat back should be adjusted to its most upright position and, if possible, the seat height should be adjusted to the appropriate ergonomic position...
