Kia EV2: Maintenance / Climate control air filter. Inspecting the climate control air filter

Inspecting the climate control air filter

Replace the cabin climate control air filter according to the manufacturer maintenance schedule to ensure clean air circulation inside your Kia EV2. If you frequently drive your vehicle in heavily air-polluted urban areas or across dusty, unpaved rough roads for extended periods, have the cabin filter inspected more frequently and replaced ahead of schedule. Perform the following step-by-step procedure to replace the climate control air filter carefully without damaging surrounding dashboard components.

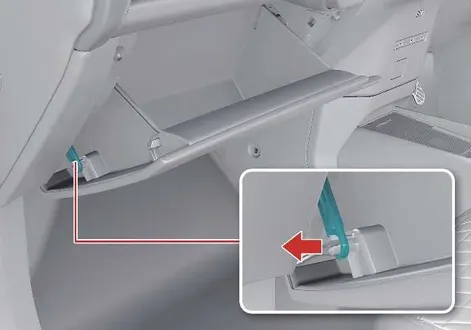

1. Open the glove box and detach the glove box damper arm from the retaining stopper located on the right side.

   Step one: detaching the glove box damper on the Kia EV2.

   Release the damper gently to allow the glove box to drop downward for cabin filter access.

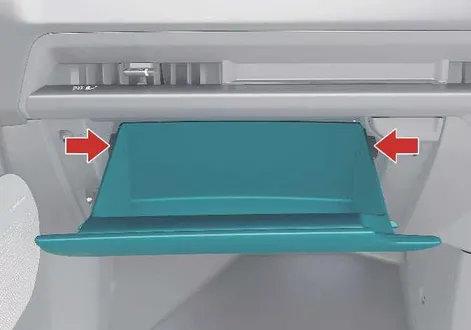

2. With the glove box unlocked and open, gently press inward on both outer sides of the glove box housing and pull it downward to completely release it from its mounting hinges.

   Step two: releasing the glove box housing sides on the Kia EV2.

   Handle the plastic trim components with care to avoid scratching the dashboard surface.

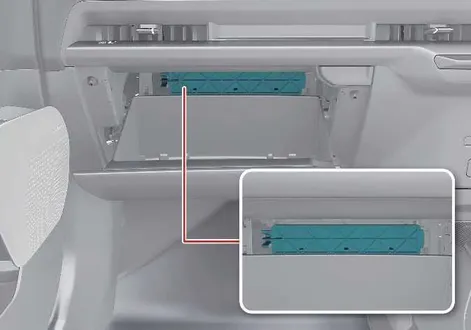

3. Remove the dedicated climate control air filter access cover by pulling outward on the right side latch of the cover.

   Step three: removing the climate control air filter cover in a Kia EV2.

   Unlatch the cover carefully to expose the old particulate filter element inside.

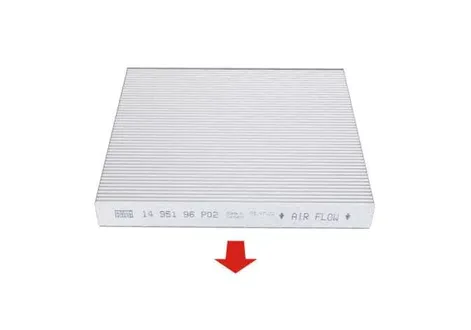

4. Slide out and replace the old climate control air filter with a fresh, genuine replacement element.

   Step four: replacing the old cabin air filter element in the Kia EV2.

   Verify correct airflow direction arrows printed on the side of the new filter element.

5. Reassemble the climate control air filter housing, access cover, and glove box assembly securely by executing all disassembly steps in reverse order.

NOTE

When you replace the climate control air filter in your Kia EV2, make sure to install the new element correctly facing the right direction. Improper installation can cause airflow obstruction, ventilation noise, and a notable reduction in filtration effectiveness.
